Product Details:
|
| Size: | 97 X 75 X 44mm | Type: | Led Work Light |
|---|---|---|---|
| LED Chip: | 4PCS*6W OSRAM LED | LED Power: | 24W |
| Operation Temp: | -35℃～+70℃ | Trademark: | HANMA |
| Warranty: | 1 Year | Accessories: | Wire Harness, Brackets |
| Beam Pattern: | Flood | Color Temperature: | 5700K |
| IP Rating: | IP 67 | Certification: | CE, EMC, RoHS, IP67 |
| Lamp Body Material: | Extruding Aluminum Housing, PC Lens, Stainless Steel | Car Model: | Truck, Universal, ATV, UTV, AUV, Off-road |

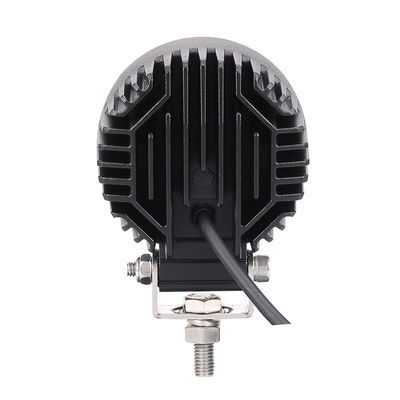

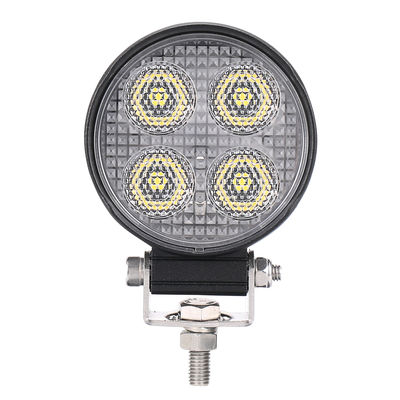

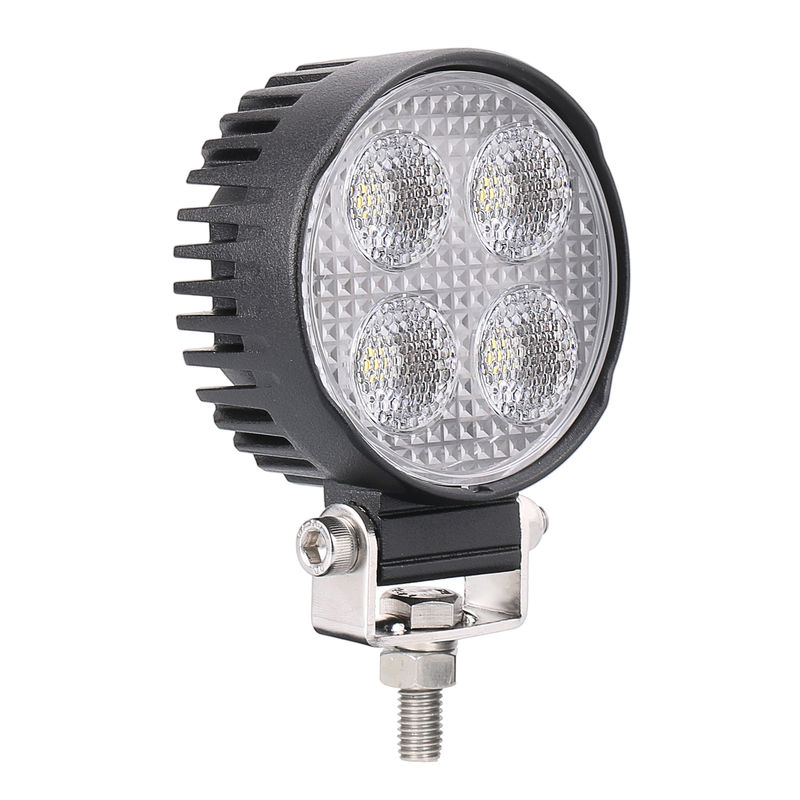

HIGH POWER 3 INCH WORK LIGHT
High Lumen Led Work Light 24W, waterproof, Osram Led,Temperature Control System, CE, ROHS, IP67
Quick Detail:
| Tech Data | |
| Model | HML-7824 |
| LED Qty | 4 PCS |
| LED Type | 4PCS*6w OSRAM LED |
| LED Power | 24W |
| LED Color | Pure white |
| Operating Voltage | DC10-30V |
| Color Temperature | 5700K |
| Lumens Output | 2750lm |
| Working Temperature | -35℃～+70℃ |
| Storage Temperature | -40℃～+100℃ |
| Life span | >30000hrs |
| Certification | CE, EMC, RoHS, IP67, R10, R23 |
| IP Grade | IP67 |
| Housing Color | Black |
| Housing Material | Extruding Aluminum |
| Beam pattern | Flood |
| Lux@10m(Combo) | 25lx |
Description:
| Model | LED CHIPS | LEDS | Raw Power | Raw Lumen | Effective Lumen | Amp(12V/24V) | OPTIONAL BEAM |
| HML-7724/7824 | OSRAM 6w | 4 | 29-32W | 2750lm | 1400-2200m | 1.29/2.47 | FLOOD |
Application:
Commercial vehicle, heavy duty truck, offroad vehicle, ambulance, fire truck...
BEAM PATTERN:
1x LED WORK LIGHT
1x BRACKET
Factory Introduction
Production Progress(work lights for Example):
Package Progress:
Warehouse:
WHY CHOOSE US
1. High quality: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
2. Reasonsable price: We are factory and aim at middle and high end,so we could offer you high quality products but reasonable price!
3. One time delivery: Delivery the goods in the confirmed time!For faster delivery,we have our own cooperation Expree company to save you time to get the products on this issue
4. Professional sales: Good communication in patient and well known about the stage lighting products.
5. Warranty: The product warranty period is 1 years. In this ONE years, you just need to send us a video or picture which records the damaged part of the lights.Then we will send Brand -NEW replacement FREE OF CHARGE with your next order.
FAQ:
Q1:How do I know your lights are of the highest quality?
A:With IP67, IP69K ratings, the research has already been done for you! These standards give you clear cut pass/fail scenarios to ensure only the toughest of the tough get passed these guys, including water, temperature, pressure, and sheer brute force.
Q2: What is light beam spread pattern, and what is best for me?
A:Flood - Wide-spread light to illuminate the side and front of your rig. Perfect for those who want a wider cone of light than a spot.
Spo t- Great for those who need those piercing beams of light that seem to travel forever.
Drving - This is perfect for mounting on your front bumper or If you have a car, this is great for mounting in the lower grill or in the opening underneath your front bumper.
Q3: Do you accept OEM and ODM?
A: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
Q4: Not waterproof?
A: One or two vent holes are usually designed for heat dissipation and to prevent deformation of the lights caused by thermal expansion and contraction, so it is normal for water vapor to be inside the lights, as long as the lights turns on, it will evaporate quickly.
