Product Details:
|
| Size: | 51 Inch | Type: | AUTO LED LIGHT BAR |
|---|---|---|---|
| LED Chip: | 39pcs*3w OSRAM LEDS | LED Power: | 117W |
| Operation Temp: | -35℃～+70℃ | Trademark: | HANMA |
| Warranty: | 1 Year | Accessories: | Wire Harness, Brackets |
| Beam Pattern: | Flood | Color Temperature: | 6000K |
| IP Rating: | IP 67 | Certification: | CE, EMC, RoHS, IP67, IP69K, EMARK, ISO9001 |
| Lamp Body Material: | Extruding Aluminum Housing, PC Lens, Stainless Steel | Car Model: | Truck, Universal, ATV, UTV, AUV, JEEP, Off-road |
| High Light: | UTV 117W Slim Single Row Led Light Bar,117W 51'' UTV led light bar,51'' PC LEN osram led bar |
||

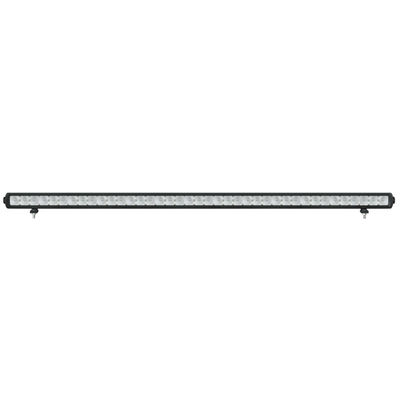

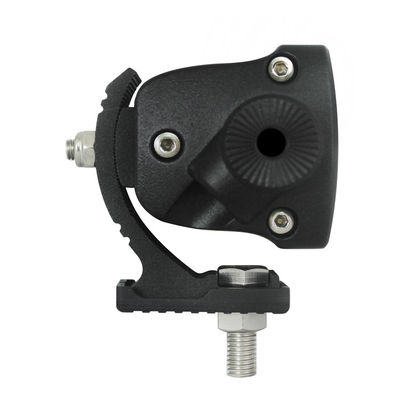

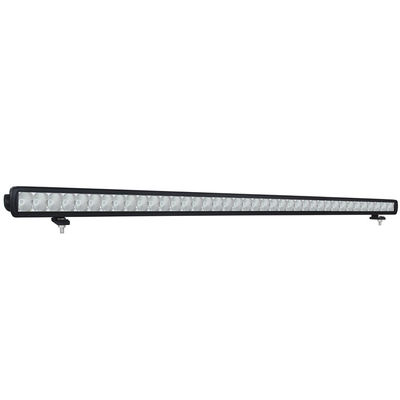

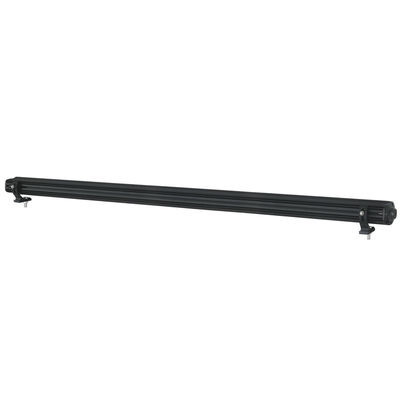

PC LEN Single Row LED ATV UTV Light Bar OSRAM LED Light Bar Mounting Brackets Lamp
PC LEN Single Row LED ATV UTV Light Bar OSRAM LED Light Bar Mounting Brackets Lamp
Quick Detail
| Tech Data | |
| Model | HML-B6117-OS3 90° |
| LED Qty | 1 PCS |
| LED Type | 39pcs*3w OSRAM LEDS |
| LED Power | 117W |
| LED Color | Pure white |
| Operating Voltage | DC10-30V |
| Color Temperature | 6000K |
| Lumens Output | 10530lm |
| Working Temperature | -35℃～+70℃ |
| Storage Temperature | -40℃～+100℃ |
| Life span | >30000hrs |
| Certification | CE, EMC, RoHS, IP67, IP69K, EMARK, ISO9001 |
| IP Grade | IP67 |
| Housing Color | Black |
| Housing Material | Extruding Aluminum |
| Optional Beam pattern | Spot, Flood, Combo |
| Dimension | 51 inch |
| Lux@10m(Combo) | 5400lx |
Osram 3W LED IP67 White 6000K Single Row Off Road Led Light bar :HML-B6 SERIES
| Model | Size | LED | Raw Power | Raw Lumen | AMP(12V/24V) | Size(in/mm) | ||
| A | B | C | ||||||
| HML-B609 | 5.5’ | 4 | 4.5 | 567 | 0.38/0.27 | 5.51"/140 | 2.32"/59 | 2.05"/52 |
| HML-B618 | 9" | 6 | 9 | 1134 | 0.75/0.38 | 9.29"/236 | 2.32"/59 | 2.05"/52 |
| HML-B645 | 20.5" | 15 | 22.5 | 2835 | 1.88/0.94 | 20.26"/524 | 2.32"/59 | 2.05"/52 |
| HML-B672 | 32" | 24 | 36 | 4536 | 3.00/1.50 | 31.97"/812 | 2.32"/59 | 2.05"/52 |
| HML-B690 | 39.5" | 30 | 45 | 5670 | 3.75/1.88 | 39.53"/1004 | 2.32"/59 | 2.05"/52 |
| HML-B6117 | 51" | 39 | 58.5 | 7371 | 4.88/2.44 | 50.87"1292 | 2.32"/59 | 2.05"/52 |
Beam Pattern
Application
1. Off-Road vehicles: 4×4, ATV, UTV, truck, Fork lift, trains, boat, bus, and tanks
2. Engineering vehicles: Excavator, road roller, bulldozer, crane and mining truck etc.
3. Vehicles: Fire engine, police cars, rescue vehicle, communication vehicle, military command vehicle etc.
1x 51 inch LED Light Bar
1x Mounting Bracket Kits
Factory Introduction
Hanma Co., Ltd has been engaged in the auto light business since 2005. In 2009, Hanma entered the
field of high power LED auto light including LED work light successfully and became one of the earliest
companies in this industry in China.
The product series include led light bar, led work light, led driving light, offroad lighting, LED Pod lights,
LED Head lights, LED remote search lights.
With the rapid development, Hanma moved to the Baiyun District of Guangzhou, China, and built a bigger
factory in the September of 2013, covering an area over 16,000 square meters and equiping with advanced
equipment and facilities. This promotes Hanma’s production capacity to 1,000 pcs/day for light bars and
6,000pcs/day for work lights.
Besides, Hanma has introduced talents of R&D, QC, PMC, Sales and new method of management to make
Hanma a strong team. At present, Hanma has passed the quality systerm of ISO 9001:2008 and get the
SGS certificate. Hanma’s products are EMARK, CE, RoHS, IP67 certificated. Owing to its effort and customers’ support.
Hanma is now a leader in high power LED auto light industry in China.
Hanma and its products have very good reputation worldwide. So far, Hanma has established cooperation with
customers in more than 80 countries, serving 167 customers in 33 countries worldwide, 10+ world top brands;
30+ regional top brands.
Hanma will continue to devote itself into new product research and development, provide goods with outstanding
quality and create more values for you and the world! Your satisfaction is what we pursue!
Production Progress(work lights for Example)
Package Progress
Warehouse
Certifications
Hanma’s products are EMARK, CE,SAE DOT,FCC,SMETA, RoHS, IP67, IP69K,ISO 9001 and TS16949 certificated.
And Hanma is a National High-Tech Enterprise, AEO certified company by Chinese customs, SMETA Audit Factory and BSCI Audit Factory.
Qualification
HANMA is platinum partner to CREE company.
HANMA is Platinum Strategic partners to OSRAM-Industry exclusive.
HANMA is the biggest customer to OSRAM and CREE in the automotive LED light aftermarket.
2019 Vendor award from Harbor Freight Tools ( top 5 among 2000 vendors)
Showroom
WHY CHOOSE US
1. High quality: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
2. Reasonsable price: We are factory and aim at middle and high end,so we could offer you high quality products but reasonable price!
3. One time delivery:Delivery the goods in the confirmed time!For faster delivery,we have our own cooperation Expree company to save you time to get the products on this issue
4. Professional sales:Good communication in patient and well known about the stage lighting products.
5. Warranty: The product warranty period is 1 years. In this ONE years, you just need to send us a video or picture which records the damaged part of the lights.Then we will send Brand -NEW replacement FREE OF CHARGE with your next order.
FAQ
Q1:How do I know your lights are of the highest quality?
A:With IP67, IP69K ratings, the research has already been done for you! These standards give you clear cut pass/fail scenarios to ensure only the toughest of the tough get passed these guys, including water, temperature, pressure, and sheer brute force.
Q2: What is light beam spread pattern, and what is best for me?
A:Flood - Wide-spread light to illuminate the side and front of your rig. Perfect for those who want a wider cone of light than a spot.
Spot - Great for those who need those piercing beams of light that seem to travel forever.
Drving - This is perfect for mounting on your front bumper or If you have a car, this is great for mounting in the lower grill or in the opening underneath your front bumper.
Q3: Do you accept OEM and ODM?
A: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
