Product Details:
|
| Size: | 9 Inch | LED Chip: | 6pcs*3w OSRAM LEDS |
|---|---|---|---|
| LED Power: | 18 W | Type: | AUTO LED LIGHT BAR |
| Color Temperature: | 5700K | Certification: | CE, RoHS, IP67, IP69K, R10 EMC |
| Beam Pattern: | Spot/Combo | IP Rating: | IP67 |
| Lamp Body Material: | Extruding Aluminum Housing, PC Lens, Stainless Steel | Trademark: | HANMA |
| Warranty: | 1 Year | Accessories: | Wire Harness, Brackets |
| High Light: | Slim Single Row LED Light Bar 22.86cm,9in 18w light bar 1620lm,9in waterproof LED light bar for boats |
||

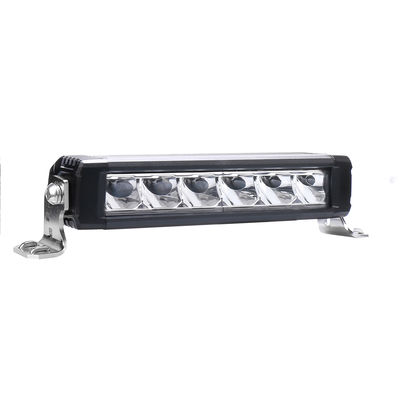

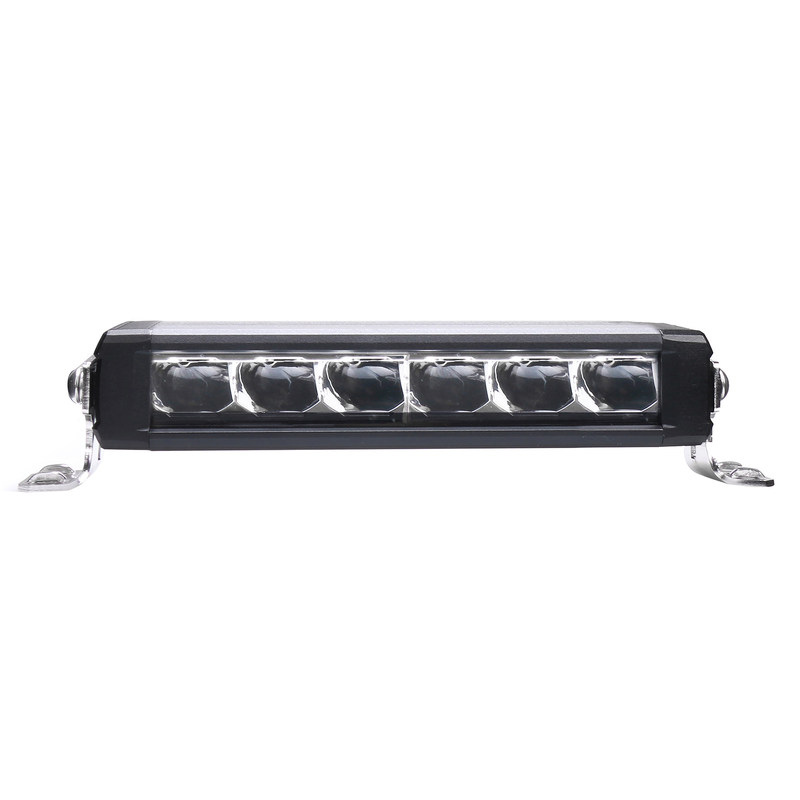

HANMA Single Row Car LED Light Bar 18W 9 Inch Waterproof LED Auto Lighting OEM
9 inch Single Row Light Bar 18W Spot Combo Off Road LightSlim Light Bar for SUV ATV Boat
Quick Detail:
| Tech Data | |
| Model | HML-B1118 |
| LED Qty | 1 PCS |
| LED Type | 6pcs*3w OSRAM LEDS |
| LED Power | 18W |
| LED Color | Pure white |
| Operating Voltage | DC10-30V |
| Color Temperature | 5700K |
| Lumens Output | 1620lm |
| Lux@10m(Combo) | 1280lx |
| Working Temperature | -35℃～+70℃ |
| Storage Temperature | -40℃～+100℃ |
| Life span | >30000hrs |
| Certification | CE, RoHS, IP67, IP69K, R10, EMC |
| IP Grade | IP67 |
| Housing Color | Black |
| Housing Material | Extruding Aluminum |
| Beam pattern | Spot/combo |
| Dimension | 9inch |
Description:
1. Input Voltage: 10 -30V DC (fits 12V, 24V vehicles)
2. Working Lifespan: Over 30,000 hours

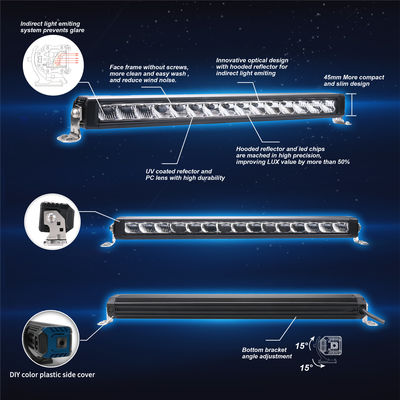

3. 45mm More compact and slim design
4. Light pattern: Spot
Osram 3W LED IP67 White 5700K Single Row Off Road Led Light bar: B11 SERIES

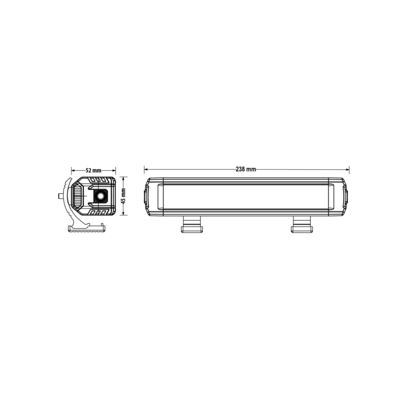

| Model | Size | LED | Raw Power | Raw Lumen | Lux/10m | Lux/10m | Size(in/mm) | ||
| Spot | A | B | C | ||||||
| HML-B1109 | 5.5’ | 3 | 12W | 760lm | 1/0.5 | 672 | 5.59"/142 | 2.05"/52 | 1.77"/145 |
| HML-B1118 | 9" | 6 | 24W | 1450lm | 2/1 | 1304 | 9.37"/238 | 2.05"/52 | 1.77"/145 |
| HML-B1145 | 20.5" | 15 | 58W | 3750lm | 4.84/2.42 | 3168 | 20.71"/526 | 2.05"/52 | 1.77"/145 |
| HML-B1172 | 32“ | 24 | 96W | 5600m | 8/4 | 4840 | 32.05"/814 | 2.05"/52 | 1.77"/145 |
| HML-B1190 | 39.5" | 30 | 116W | 7250m | 9.66/4.84 | 5880 | 39 61"/1006 | 2.05"/52 | 1.77"/145 |
| HML-B11117 | 51" | 39 | 154W | 9050m | 12.8/6.42 | 7360 | 50.94"1294 | 2.05"/52 | 1.77"/145 |
Application:
1. Off-Road vehicles: 4×4, ATV, UTV, truck, Fork lift, trains, boat, bus, and tanks
2. Engineering vehicles: Excavator, road roller, bulldozer, crane and mining truck etc.
3. Vehicles: Fire engine, police cars, rescue vehicle, communication vehicle, military command vehicle etc.
BEAM PATTERN
1x 9 inch LED Light Bar
1x Mounting Bracket Kits
Factory Introduction:
Production Progress(work lights for Example):
Package Progress:
Warehouse:
WHY CHOOSE US
1. High quality: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
2. Reasonsable price: We are factory and aim at middle and high end,so we could offer you high quality products but reasonable price!
3. One time delivery:Delivery the goods in the confirmed time!For faster delivery,we have our own cooperation Expree company to save you time to get the products on this issue
4. Professional sales:Good communication in patient and well known about the stage lighting products.
5. Warranty: The product warranty period is 1 years. In this ONE years, you just need to send us a video or picture which records the damaged part of the lights.Then we will send Brand -NEW replacement FREE OF CHARGE with your next order.
FAQ:
Q1:How do I know your lights are of the highest quality?
A:With IP67, IP69K ratings, the research has already been done for you! These standards give you clear cut pass/fail scenarios to ensure only the toughest of the tough get passed these guys, including water, temperature, pressure, and sheer brute force.
Q2:What is light beam spread pattern, and what is best for me?
A:Flood- Wide-spread light to illuminate the side and front of your rig. Perfect for those who want a wider cone of light than a spot.
Spot- Great for those who need those piercing beams of light that seem to travel forever.
Drving- This is perfect for mounting on your front bumper or If you have a car, this is great for mounting in the lower grill or in the opening underneath your front bumper.
Q3: Do you accept OEM and ODM?
A: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
