5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift

Certification
China Guangzhou Hanma Electronics Technology Co. Ltd certification
China Guangzhou Hanma Electronics Technology Co. Ltd certification
I'm Online Chat Now

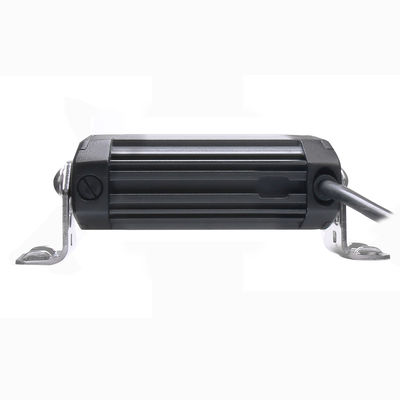

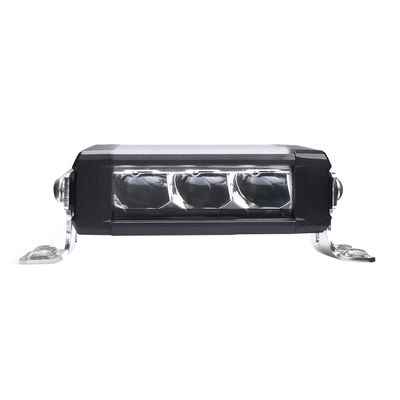

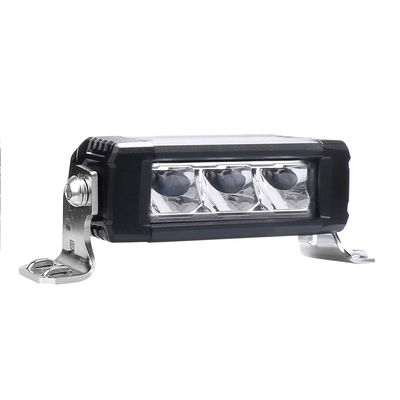

5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift

5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift
5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift

Large Image :  5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift

Product Details:
Place of Origin: Guangzhou, Guangdong
Brand Name: HANMA
Certification: CE, RoHS, IP67,IP69K,R10
Model Number: HML-B1109
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$1-100/200 PCS
Packaging Details: White box for inner packing, and carton for outer packing, neutral packing
Delivery Time: 45-60 days
Payment Terms: T/T, D/A, D/P, L/C
Supply Ability: 1-10000 PCS/45 days

5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift

Description
Size: 5.5 Inch Type: AUTO LED LIGHT BAR
LED Chip: 3pcs*3w OSRAM LEDS LED Power: 9W
Operation Temp: -35℃~+70℃ Trademark: HANMA
Warranty: 1 Year Accessories: Wire Harness, Brackets
Beam Pattern: Spot Color Temperature: 5700K
IP Rating: IP 67 Certification: CE, RoHS, IP67, IP69K, R10, EMC
Lamp Body Material: Extruding Aluminum Housing, PC Lens, Stainless Steel
High Light:

IP67 5.5inch Slim Single Row Led Light Bar

,

5.5inch Slim Single Row Led Light Bar 810lm

,

5.5inch IP67 spot led light bar

5.5inch Single Row Light Bar 9W 810m Spot Off Road Light Slim Light Bar for SUV AT

5.5inch Single Row Light Bar 9W 810lm Spot Off Road Light Slim Light Bar for SUV AT

Quick Detail:



Tech Data
Model HML-B1109
LED Qty 1 PCS
LED Type 3pcs*3w OSRAM LEDS
LED Power 9W
LED Color Pure white
Operating Voltage DC10-30V
Color Temperature 5700K
Lumens Output 810lm
Working Temperature -35℃~+70℃
Storage Temperature -40℃~+100℃
Life span >30000hrs
Certification CE, RoHS, IP67, IP69K, R10, EMC
IP Grade IP67
Housing Color Black, White
Housing Material Extruding Aluminum
Beam pattern Spot
Dimension 5.5 inch
Lux@10m(Combo) 635lx





Description:



Product New Features


1. High Luxmen: OSRAM LED with high lux and stable luminous efficiency
2. Screwless Frame and Aerodynamic Housing Design: Reduce wind resistance and noise
3. Hooded Reflector : Latest indirect illumination design to reduce glare
4. Durable Lens And Reflector: Impact- and scratch-resistant, hard coated PC lens with UV coated

5. 45mm More compact and slim design
6. Light pattern: Spot

7. Structure: less parts, foolproof design, low probability of error, more stable quality







5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 0

5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 1

5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 2

5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 35.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 45.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 5



Application:



1. Off-Road vehicles: 4×4, ATV, UTV, truck, Fork lift, trains, boat, bus, and tanks
2. Engineering vehicles: Excavator, road roller, bulldozer, crane and mining truck etc.
3. Vehicles: Fire engine, police cars, rescue vehicle, communication vehicle, military command vehicle etc.



5.5inch Spot Slim Single Row LED Light Bar 810lm IP67 For Fork Lift 6



What You Will Get ?



1x 5.5 inch LED Light Bar with DT connector

1x Mounting Bracket Kits( bottom and side bracket optional)



Factory Introduction:

Snow plow head light Heated Lens DOT EMARK SAE 5" x 7" Led Headlights, Position,Turn Signal Hi/Low  beam 2



Production Progress(work lights for Example):



Snow plow head light Heated Lens DOT EMARK SAE 5" x 7" Led Headlights, Position,Turn Signal Hi/Low  beam 3

Package Progress:

Snow plow head light Heated Lens DOT EMARK SAE 5" x 7" Led Headlights, Position,Turn Signal Hi/Low  beam 4

Warehouse:

Snow plow head light Heated Lens DOT EMARK SAE 5" x 7" Led Headlights, Position,Turn Signal Hi/Low  beam 5





Certifications:



Snow plow head light Heated Lens DOT EMARK SAE 5" x 7" Led Headlights, Position,Turn Signal Hi/Low  beam 6

Hanma’s products are EMARK, CE,SAE DOT,FCC,SMETA, RoHS, IP67, IP69K,ISO 9001 and TS16949 certificated.

And Hanma is a National High-Tech Enterprise,

AEO certified company by Chinese customs
SMETA Audit Factory
BSCI Audit Factory



Exhibition:



Snow plow head light Heated Lens DOT EMARK SAE 5" x 7" Led Headlights, Position,Turn Signal Hi/Low  beam 9

WHY CHOOSE US
1. High quality: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
2. Reasonsable price: We are factory and aim at middle and high end,so we could offer you high quality products but reasonable price!
3. One time delivery:Delivery the goods in the confirmed time!For faster delivery,we have our own cooperation Expree company to save you time to get the products on this issue
4. Professional sales:Good communication in patient and well known about the stage lighting products.
5. Warranty: The product warranty period is 1 years. In this ONE years, you just need to send us a video or picture which records the damaged part of the lights.Then we will send Brand -NEW replacement FREE OF CHARGE with your next order.



FAQ:

Q1:How do I know your lights are of the highest quality?

A:With IP67, IP69K ratings, the research has already been done for you! These standards give you clear cut pass/fail scenarios to ensure only the toughest of the tough get passed these guys, including water, temperature, pressure, and sheer brute force.

Q2: What is light beam spread pattern, and what is best for me?

A:Flood - Wide-spread light to illuminate the side and front of your rig. Perfect for those who want a wider cone of light than a spot.

Spot - Great for those who need those piercing beams of light that seem to travel forever.

Drving - This is perfect for mounting on your front bumper or If you have a car, this is great for mounting in the lower grill or in the opening underneath your front bumper.



Q3: Do you accept OEM and ODM?
A: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
