EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports

Certification
China Guangzhou Hanma Electronics Technology Co. Ltd certification
China Guangzhou Hanma Electronics Technology Co. Ltd certification
I'm Online Chat Now

EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports

EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports
EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports

Large Image :  EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports

Product Details:
Place of Origin: Guangzhou, Guangdong
Brand Name: HANMA
Certification: CE, EMC, RoHS, IP67, IP69K, EMARK, ISO:9001, TS16949
Model Number: HML-B836H
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$1-100/200 PCS
Packaging Details: White box for inner packing,and carton for outer packing
Delivery Time: 45-60 days
Payment Terms: T/T, D/A, D/P, T/T
Supply Ability: 1-10000 PCS/45 days

EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports

Description
Size: 7.5 Inch Type: LED LIGHT BAR
LED Chip: 12pcs*5w OSRAM Watt: 84W
Operation Temp: -35℃~+70℃ Tradmark: HANMA
Warranty: 1 Year Origin: Guangzhou, Guangdong
Accessories: Wire Harness, Brackets Raw Lumen: 3240lm
Working Lifetime(hour): >30000hrs Color Temperature: 5700K
High Light:

84w Dual Row Led Light Bar

,

EMARK 7.5 inch led light bar

,

EMARK OEM car roof led light bar

84w Double Row Led Light Bar Automotive Lighting Lamps Light Bar For Powersports

B8H DOUBLE row led light bar can be widely applied to 4x4, ATV, UTV, Truck, Car, Pick-up, Van, Camper, Road Buggy, Sand Rail, Train, Bus, Tank, etc. Super bright light beam dispels the darkness and lights up the forward road, clear your view for safe driving.



Quick Detail

Tech Data
Model HML-B836H
LED Qty 1 PCS
LED Type 12pcs*5w OSRAM
LED Power 84 W
LED Color Pure white
Input Voltage DC10-30V
Color Temperature 5700K
Lumens Output 3240lm
Lux@10m(Combo) 1350lx
Working Temperature -35℃~+70℃
Storage Temperature -40℃~+100℃
Life span >30000hrs
Certification CE, RoHS, IP67,IP69K, R10, ISO:9001, TS16949
IP Grade IP67,IP69K
Housing Color Black
Housing Material Extruding aluminum
Dimension 7.5inch
Beam pattern Combo





Description

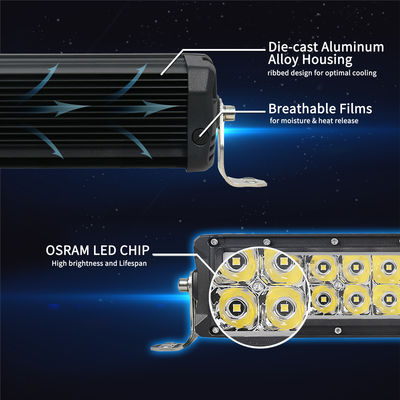

CREE 5W LED IP67 White 6000K DOUBLE ROW led light bar with heating lens: B8H SERIES



Product New Features


1. High Luxmen: OSRAM LED with high lux and stable luminous efficiency
2. Durable Lens And Reflector: Impact- and scratch-resistant, hard coated PC lens with UV coated
3. Light pattern: Combo
4. Structure: less parts, foolproof design, low probability of error, more stable quality

5. Waterproof and anti-corrosion: it can in the rain or harsh environments

6. Hooded Reflector : Latest indirect illumination design to reduce glare

7. Side bracket and bottom bracket are available, support a more flexible installation
8. Innovative optical design with hooded reflector for indirect light emiting.
9. Innovative heating lens, intelligent temperature detection, automatic adjustment of start-up and turn-off time,

effective removal of residual



EMARK OEM Car Roof Dual Row Led Light Bar 84w 7.5 Inch For Power Sports 0







Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 1

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 2

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 3





B8H Series Family



Moble Size LEDS Raw Power Raw Lumen Amp(12V/24V) Lux/10m
COMBO
Size(inch/mm)
A B C

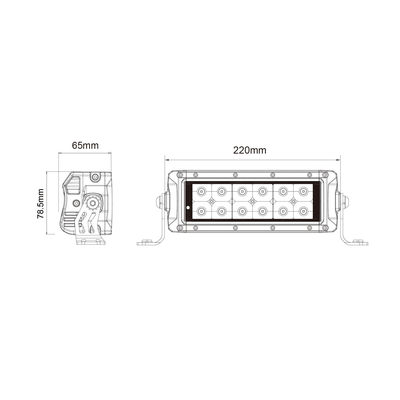

HML-B836H 7.5" 12 60W 3240lm 3.86/2.02 1350 8.66"/220 2.56"/65 3.09"/78.5
HML-B872H 13.5" 24 96W 6480im 6.12/3.25 2700 14.65"/372 2.56"/65 3.09"/78.5
HML-B8120H 21.5" 40 144W 10800lm 9.9/4.9 4050 22.72"/577 2.56"/65 3.09"/78.5
HML-B8180H 31.5" 60 204W 16200lm 13.2/6.75 6200 32.76"/832 2.56"/65 3.09"/78.5
HML-B8240H 41.5" 80 264W 21600lm 18.1/5.65 7500 42.80"/1087 2.56"/65 3.09"/78.5
HML-B8288H 50" 96 312W 25920lm 19.8/10.5 9500 50.67"/1287 2.56"/65 3.09"/78.5
HML-B8300H 52" 100 324W 27000lm 20.7/10.7 9700 52.76"/1340 2.56"/65 3.09"/78.5



Application



1. Off-Road vehicles: 4×4, ATV, UTV, truck, Fork lift, trains, boat, bus, and tanks
2. Engineering vehicles: Excavator, road roller, bulldozer, crane and mining truck etc.
3. Vehicles: Fire engine, police cars, rescue vehicle, communication vehicle, military command vehicle etc.





Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 4





What You Will Get ?



1x 7.5 inch LED Light Bar with DT connector

1x Mounting Bracket Kits



Factory Introduction

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 5

Hanma Co., Ltd has been engaged in the auto light business since 2005. In 2009, Hanma entered the

field of high power LED auto light including LED work light successfully and became one of the earliest

companies in this industry in China.

The product series include led light bar, led work light, led driving light, offroad lighting, LED Pod lights,

LED Head lights, LED remote search lights.


With the rapid development, Hanma moved to the Baiyun District of Guangzhou, China, and built a bigger

factory in the September of 2013, covering an area over 16,000 square meters and equiping with advanced

equipment and facilities. This promotes Hanma’s production capacity to 1,000 pcs/day for light bars and

6,000pcs/day for work lights.

Besides, Hanma has introduced talents of R&D, QC, PMC, Sales and new method of management to make

Hanma a strong team. At present, Hanma has passed the quality systerm of ISO 9001:2008 and get the

SGS certificate. Hanma’s products are EMARK, CE, RoHS, IP67 certificated. Owing to its effort and customers’ support.

Hanma is now a leader in high power LED auto light industry in China.


Hanma and its products have very good reputation worldwide. So far, Hanma has established cooperation with

customers in more than 80 countries, serving 167 customers in 33 countries worldwide, 10+ world top brands;

30+ regional top brands.


Hanma will continue to devote itself into new product research and development, provide goods with outstanding

quality and create more values for you and the world! Your satisfaction is what we pursue!



Production Progress(work lights for Example)

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 6

Package Progress

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 7

Warehouse

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 8

Certifications

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 9

Hanma’s products are EMARK, CE,SAE DOT,FCC,SMETA, RoHS, IP67, IP69K,ISO 9001 and TS16949 certificated.

And Hanma is a National High-Tech Enterprise, AEO certified company by Chinese customs, SMETA Audit Factory and BSCI Audit Factory.



Qualification

HANMA is platinum partner to CREE company.
HANMA is Platinum Strategic partners to OSRAM-Industry exclusive.

HANMA is the biggest customer to OSRAM and CREE in the automotive LED light aftermarket.
2019 Vendor award from Harbor Freight Tools ( top 5 among 2000 vendors)

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 10

Showroom

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 11

Exhibition

Led Light Bar 4x4 High Lumen Double Row Led Light Bar Spot Car Light Auto Light Part 12

WHY CHOOSE US


1. High quality : We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
2. Reasonsable price : We are factory and aim at middle and high end,so we could offer you high quality products but reasonable price!
3. One time delivery : D
elivery the goods in the confirmed time!For faster delivery,we have our own cooperation Expree company to save you time to get the products on this issue
4. Professional sales : Good com
munication in patient and well known about the stage lighting products.
5. Warranty : The product warranty period is 1 years. In this ONE years, you just need to send us a video or picture which records the damaged part of the lights.Then we will send Brand -NEW replacement FREE OF CHARGE with your next order.

FAQ:

Q1 : How do I know your lights are of the highest quality?

A:With IP67, IP69K ratings, the research has already been done for you! These standards give you clear cut pass/fail scenarios to ensure only the toughest of the tough get passed these guys, including water, temperature, pressure, and sheer brute force.

Q2 : What is light beam spread pattern, and what is best for me?

A : Flood - Wide-spread light to illuminate the side and front of your rig. Perfect for those who want a wider cone of light than a spot.

Spot - Great for those who need those piercing beams of light that seem to travel forever.

Drving - This is perfect for mounting on your front bumper or If you have a car, this is great for mounting in the lower grill or in the opening underneath your front bumper.



Q3: Do you accept OEM and ODM?
A: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
