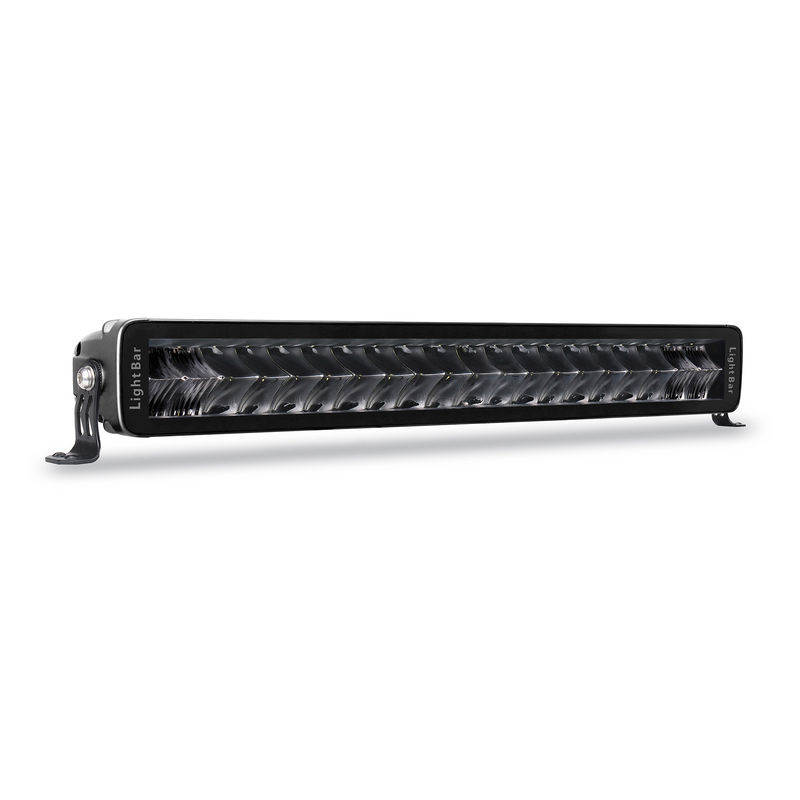

21.5" High Power Osram LED Double Row Light Bar

21.5" High Power  Osram LED Double Row Light Bar
21.5" High Power  Osram LED Double Row Light Bar
21.5" High Power  Osram LED Double Row Light Bar 21.5" High Power  Osram LED Double Row Light Bar 21.5" High Power  Osram LED Double Row Light Bar 21.5" High Power  Osram LED Double Row Light Bar 21.5" High Power  Osram LED Double Row Light Bar 21.5" High Power  Osram LED Double Row Light Bar 21.5" High Power  Osram LED Double Row Light Bar

Large Image :  21.5" High Power Osram LED Double Row Light Bar

Product Details:
Place of Origin: Guangzhou, Guangdong
Brand Name: HANMA
Certification: CE, EMC, RoHS, IP67, IP69K, R10, R112
Model Number: HML-B15120
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: USD$1-100/200 PCS
Packaging Details: White box for inner packing,and carton for outer packing
Delivery Time: 45-60 days
Payment Terms: T/T, D/A, D/P, T/T
Supply Ability: 1-10000 PCS/45 days

21.5" High Power Osram LED Double Row Light Bar

Description
Size: 21.5 Inch Type: LED LIGHT BAR
Watt: 200W Raw Lumen: 6083lm
Operation Temp: -35℃~+70℃ Tradmark: HANMA
Warranty: 1 Year Origin: Guangzhou, Guangdong
Accessories: Wire Harness, Brackets Working Lifetime(hour): >30000hrs
Color Temperature: 5700K

R112 Double Row Led Light Bar

6083lm

 High Power Double row LED Light bar



Quick Detail:

Tech Data
Model HML-B15120(E)
LED Power 200W
Raw Lumen 6083lm
Lux@10m(Combo) 2750lx
Operating Voltage 10-30 DC
Waterproof rate IP 67
LEDs 40pcs*OSRAM CSHP LEDs
Body Color Black
Color Temperature 5700K
Material extruding aluminum housing
Lens material PC
Mounting Bracket Alu firm bracket
Beam pattern Combo
Dimensions

21.5inch







B15 Series Family

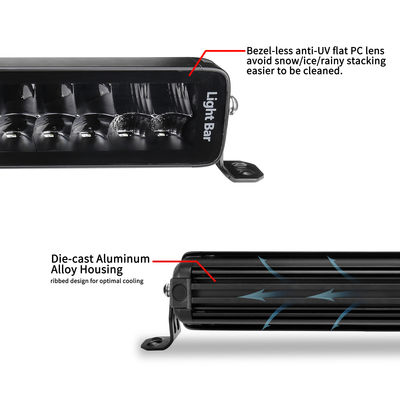

  • IP67 Waterproof Rating
  • Die Cast Aluminum
  • Moisture Breather Technology no Moisture
  • Includes DT connector, Mounts
  • Bezel-less - wind Noise Silencers
  • R112 & TCS version optional


21.5" High Power  Osram LED Double Row Light Bar 0



What's TCS:



1. Equipped with Temperature Control System(TCS),when turned on, the light can work at maximum output power and lumens;
2. When the light housing temperature reaches 75℃ as time goes on,TCS will automatically reduce the light output power and lumens until reach a thermal balance to prevent overheat and extend product lifespan;
3. When the light housing temperature below 75℃,such as when driving(well air exchange) or in low temperature environment, the TCS will increase the current,power and lumens of the light to achieve optimal performances.



Application



1. Off-Road vehicles: 4×4, ATV, UTV, truck, Fork lift, trains, boat, bus, and tanks
2. Engineering vehicles: Excavator, road roller, bulldozer, crane and mining truck etc.
3. Vehicles: Fire engine, police cars, rescue vehicle, communication vehicle, military command vehicle etc.



21.5" High Power  Osram LED Double Row Light Bar 1



Beam Pattern:



21.5" High Power  Osram LED Double Row Light Bar 2



What You Will Get ?



1x 21.5  inch LED Light Bar

1x Side Mounting Bracket Kits



Factory Introduction

21.5" High Power  Osram LED Double Row Light Bar 3

Hanma Co., Ltd has been engaged in the auto light business since 2005. In 2009, Hanma entered the

field of high power LED auto light including LED work light successfully and became one of the earliest

companies in this industry in China.

The product series include led light bar, led work light, led driving light, offroad lighting, LED Pod lights,

LED Head lights, LED remote search lights.



With the rapid development, Hanma moved to the Baiyun District of Guangzhou, China, and built a bigger

factory in the September of 2013, covering an area over 16,000 square meters and equiping with advanced

equipment and facilities. This promotes Hanma’s production capacity to 1,000 pcs/day for light bars and

6,000pcs/day for work lights.

Besides, Hanma has introduced talents of R&D, QC, PMC, Sales and new method of management to make

Hanma a strong team. At present, Hanma has passed the quality systerm of ISO 9001:2008 and get the

SGS certificate. Hanma’s products are EMARK, CE, RoHS, IP67 certificated. Owing to its effort and customers’ support.

Hanma is now a leader in high power LED auto light industry in China.


Hanma and its products have very good reputation worldwide. So far, Hanma has established cooperation with

customers in more than 80 countries, serving 167 customers in 33 countries worldwide, 10+ world top brands;

30+ regional top brands.


Hanma will continue to devote itself into new product research and development, provide goods with outstanding

quality and create more values for you and the world! Your satisfaction is what we pursue!




Production Progress(work lights for Example)

21.5" High Power  Osram LED Double Row Light Bar 4

Package Progress

21.5" High Power  Osram LED Double Row Light Bar 5

Warehouse

21.5" High Power  Osram LED Double Row Light Bar 6

Certifications

21.5" High Power  Osram LED Double Row Light Bar 7

Hanma’s products are EMARK, CE,SAE DOT,FCC,SMETA, RoHS, IP67, IP69K,ISO 9001 and TS16949 certificated.

And Hanma is a National High-Tech Enterprise, AEO certified company by Chinese customs, SMETA Audit Factory and BSCI Audit Factory.



Qualification

HANMA is platinum partner to CREE company.
HANMA is Platinum Strategic partners to OSRAM-Industry exclusive.

HANMA is the biggest customer to OSRAM and CREE in the automotive LED light aftermarket.
2019 Vendor award from Harbor Freight Tools ( top 5 among 2000 vendors)

21.5" High Power  Osram LED Double Row Light Bar 8

Showroom

21.5" High Power  Osram LED Double Row Light Bar 9

Exhibition

21.5" High Power  Osram LED Double Row Light Bar 10

WHY CHOOSE US


1. High quality : We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
2. Reasonsable price : We are factory and aim at middle and high end,so we could offer you high quality products but reasonable price!
3. One time delivery : D
elivery the goods in the confirmed time!For faster delivery,we have our own cooperation Expree company to save you time to get the products on this issue
4. Professional sales : Good com
munication in patient and well known about the stage lighting products.
5. Warranty : The product warranty period is 1 years. In this ONE years, you just need to send us a video or picture which records the damaged part of the lights.Then we will send Brand -NEW replacement FREE OF CHARGE with your next order.

FAQ:

Q1 : How do I know your lights are of the highest quality?

A:With IP67, IP69K ratings, the research has already been done for you! These standards give you clear cut pass/fail scenarios to ensure only the toughest of the tough get passed these guys, including water, temperature, pressure, and sheer brute force.

Q2 : What is light beam spread pattern, and what is best for me?

A : Flood - Wide-spread light to illuminate the side and front of your rig. Perfect for those who want a wider cone of light than a spot.

Spot - Great for those who need those piercing beams of light that seem to travel forever.

Drving - This is perfect for mounting on your front bumper or If you have a car, this is great for mounting in the lower grill or in the opening underneath your front bumper.



Q3: Do you accept OEM and ODM?
A: We are professional OEM and ODM suppliers and we are experienced in control control.All our products have completed aging test before package and have to be passed 4 steps QC tested before shipping.
